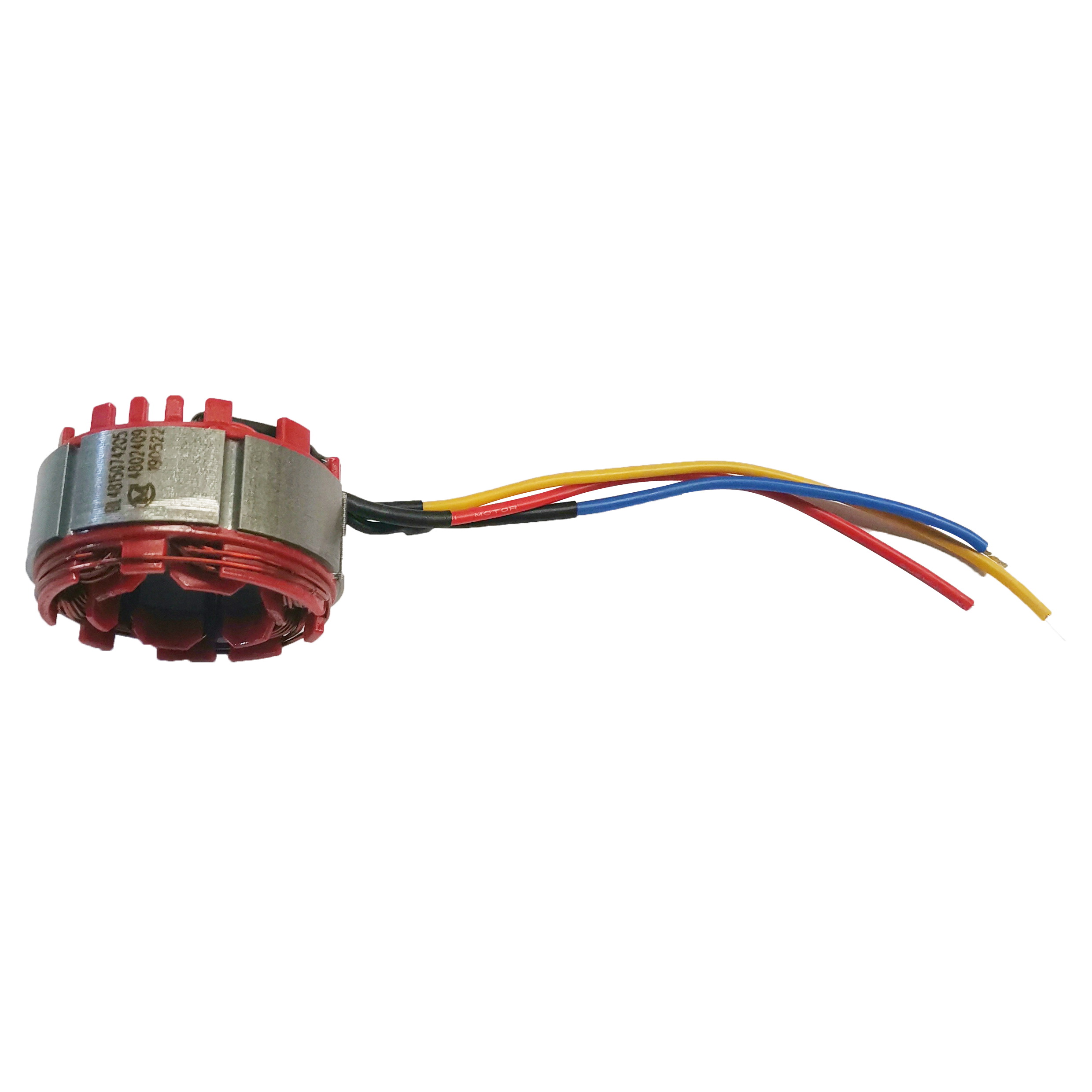

INGCO Stator of 300nm Cordless Impact Wrench, CIWLI2001-SP-3

The Powerhouse Within: Unveiling the Cordless Impact Wrench Stator

The cordless impact wrench may seem like a simple tool, but within its housing lies a hidden gem: the stator. This unsung hero is the heart of the wrench’s power, silently converting electrical energy into the forceful torque that tackles tough fastening jobs. Here’s a deep dive into the cordless impact wrench stator:

Function:

• Electrical to Mechanical Marvel: The stator’s primary function is to transform electrical energy from the battery into mechanical energy. It achieves this by creating a rotating magnetic field within the wrench. This magnetic field interacts with the rotor (another key component), causing it to spin at high speed. The rotor’s rotation is then transferred to the output shaft, ultimately driving the impact mechanism and delivering the powerful torque needed for loosening or tightening bolts and nuts.

Construction:

• Stationary Electromagnets: The stator is essentially a stationary assembly of electromagnets. These electromagnets consist of coils of insulated copper wire wrapped around a laminated steel core.
• Laminated Steel Core: The laminated steel core minimizes energy losses due to eddy currents, which are electrical currents that can occur within the core and reduce efficiency.
• Commutator (Brushed Motors) or Electronic Controls (Brushless Motors): In brushed motors, a commutator is a cylindrical component that helps maintain continuous rotation by reversing the current direction in the windings. Brushless motors, on the other hand, rely on electronic controls to achieve the same function.

Types of Stators:

• Brushed vs. Brushless: There are two main types of stators found in cordless impact wrenches: brushed and brushless. Brushed motors are generally less expensive but may require more maintenance due to brush wear. Brushless motors offer advantages like increased efficiency, longer lifespan, and potentially higher power output.

Maintenance:

• While stators are generally durable components, some basic maintenance practices can extend their lifespan:
  • Prevent Overheating: Avoid overloading the wrench or using it for extended periods without breaks. This helps prevent overheating, which can damage the stator’s windings.
  • Keep Vents Clean: The wrench’s vents allow for heat dissipation. Regularly cleaning them removes dust and debris that can obstruct airflow and contribute to overheating.

Replacement:

• If your impact wrench experiences a significant power loss or erratic behavior, it might indicate a stator issue. Replacing a stator can be a complex task, and depending on your expertise, it’s often recommended to consult a qualified technician for proper diagnosis and repair.

In Conclusion:

The cordless impact wrench stator may be hidden from sight, but it’s the driving force behind the tool’s powerful performance. Understanding its function, construction, and maintenance needs allows you to appreciate its importance and take steps to ensure your impact wrench operates efficiently and delivers reliable power for years to come. Remember, when dealing with complex components like the stator, consulting a professional for repairs or replacements can be the safest and most reliable option.
