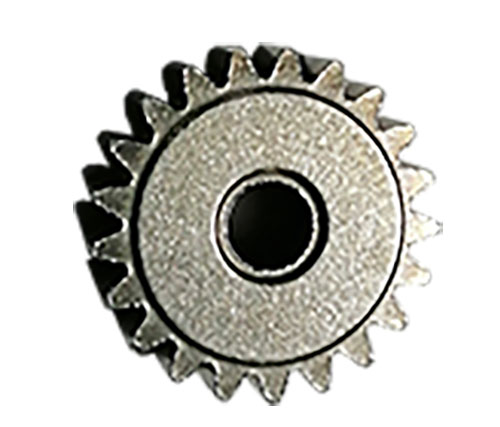

INGCO Inner Planetary Tooth of 300nm Cordless Impact Wrench, CIWLI2001-SP-1.P.T

The Powerhouse Within: Unveiling the Cordless Impact Inner Tooth

The cordless impact driver or wrench you rely on for tough fastening jobs packs a powerful punch. But the key to its impressive torque lies within a hidden hero: the cordless impact inner tooth. Here’s a deep dive into this crucial component:

Function:

• Force Multiplier: The inner tooth is a vital element in the impact mechanism of your cordless tool. It works in conjunction with a hammer and anvil to deliver high-torque rotational force (torque) needed for driving screws, nuts, and bolts into dense materials. Here’s how it works:
  • Rotation and Impact: The motor spins a rotor shaft connected to the hammer. As the shaft rotates, the inner tooth catches a matching groove on the anvil.
  • Impact Delivery: Just before reaching the top of the groove, the inner tooth disengages from the anvil. This sudden stop causes the hammer to slam forward, transferring the built-up momentum to the anvil.
  • Rotational Force: The anvil, in turn, transmits this impact force to the socket or fastener attached, driving it into the material with high torque.
  • Repeating Cycle: The inner tooth quickly re-engages with the anvil, and the cycle of rotation, impact, and force transmission repeats rapidly, delivering powerful and fast tightening or loosening action.

Construction:

• Shape and Material: The inner tooth is typically a small, hardened steel protrusion designed to fit precisely into the grooves of the anvil. Its durability is crucial to withstand the repeated impacts and forces involved.
• Location: The inner tooth is usually located on a rotating component within the impact mechanism, such as the rotor shaft or a dedicated inner tooth carrier.

Impact Mechanism Variations:

• Twin Hammer Design: Some cordless impacts utilize a twin-hammer design with two inner teeth for even faster impact rates and potentially higher torque output.

Maintenance:

• While the inner tooth is a robust component, it can wear down over time due to extensive use or improper tool application (e.g., using the impact driver for chiseling). This can manifest as reduced torque or complete impact mechanism failure.

Replacement:

• Replacing a worn inner tooth is often a job for a qualified technician. They have the expertise and tools to disassemble the impact mechanism and ensure proper installation of a new inner tooth for optimal performance and safety.

In Conclusion:

The cordless impact inner tooth, though small, plays a critical role in delivering the forceful torque that makes your impact driver such a valuable tool. Understanding its function, construction, and maintenance needs allows you to appreciate its importance and operate your impact driver with confidence. Remember, for repairs or replacements involving the impact mechanism, consulting a qualified technician is the safest and most reliable option.
